Product Description

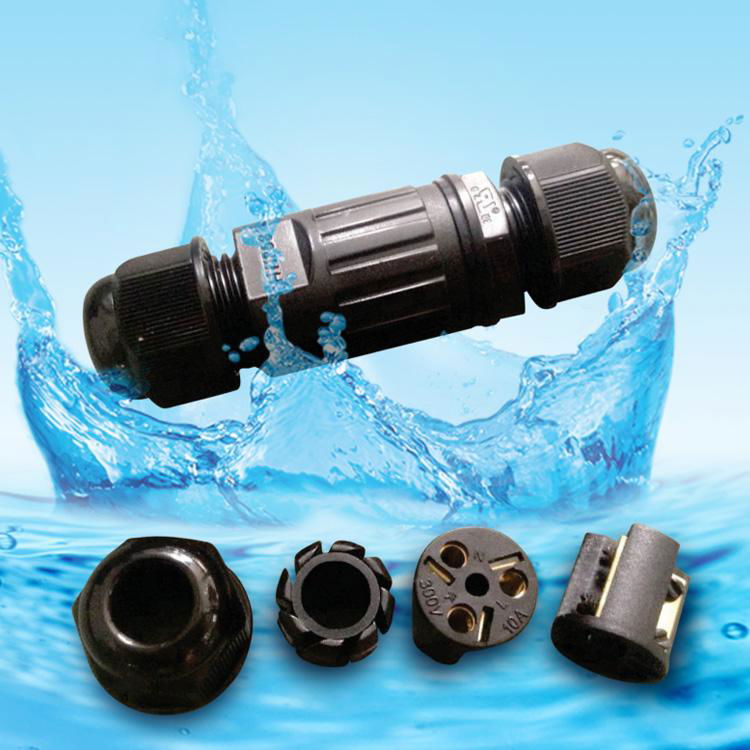

Waterproof cable connector
M20 quick terminal block splice type

M20 Screwless connector with IP68 waterproof is designed quick installation , without screwdriver , can install or extend the cable by hand , very quick and convinent , it's also very efficient for repairing .

The shell is made of Nylon PA66 , which have very stable performace while working in harsh environment, Nikel-plated Brass contact , insure low contact resistance , very good for electrictity conductivity .

The quick M20 screwless connector support 450V , 24A each pole , with cable OD 5-12mm and wire size 0.5mm²-2.5mm² .

Excellent waterproof design reach IP68 , can be used under waterproof , best choice for outdoor lighting and equipments

INFO @ LPINTE. COM









Product Image
