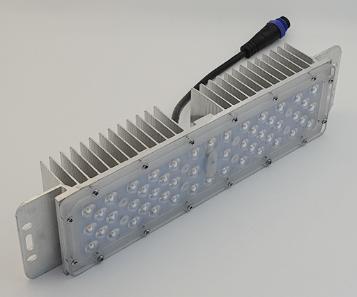

28w led card LV2412 steetlight module

28w led module for street lgihts SP90 LU1,LU2,LU4,LU6,LU8

LPINTE-LV3519

Size: 131x74x2mm

UL List Aluminous MCPCB

Leds: USA Bridgelux led chip 45mil, package in Mainland China, 120~180lm (CC 350~700mA)

Leds quantity: 28pcs

Leds Array #1: 28pcs Series;

Voltage:90~96VDC,

CC: 320~650mA to get 1~3w acording to your heatsink capacity.

Leds Array #2, 7pcs Series 4 Parallels,

Voltage: 20-24VDC,

CC: 1.25~2.6A to get 1~3w according to your heatsink capacity.

Led Lens: PMMA Optics,

Beam Angle: The Horizontal Axis 140°，The Vertical Axis 60°

O-Ring IP65
